Guangzhou Angu hardware Fastener Co., Ltd

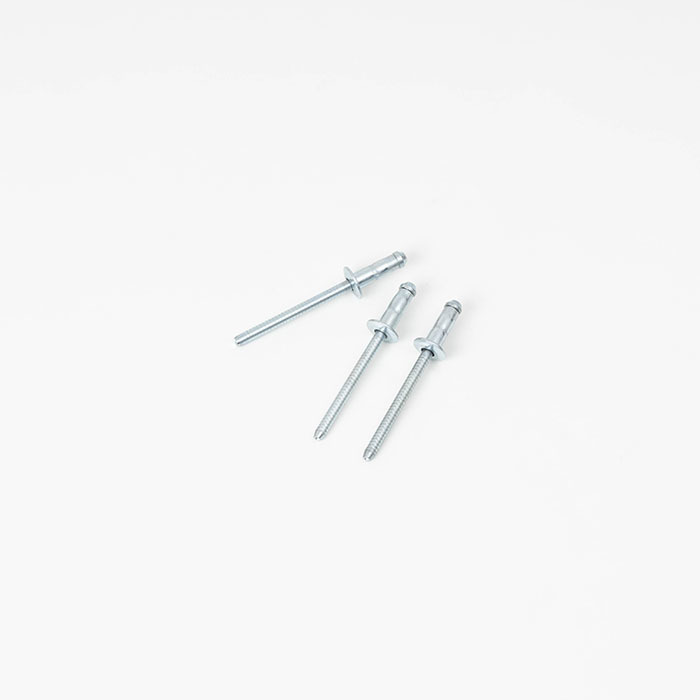

Multi-grip, high strength steel and stainless steel breakstem fasteners.

Key features and benefits

*High shear and tensile strength provides strong,vibration resistant joints

*Stainless steel option provides high corrosion resistance and is ideal for applications requiring elevated temperatures

*Multi-grip capability accommodates wide variations in material thickness

*One fastener can be used to replace several standard grip fasteners thus reduced fastener inventory and simpler stock control

*Good hole fill compensates for irregular, oversized,slotted or misaligned holes and can stop movement in non-standard holes

*Retained stem avoids damage, electrical problems or rattling caused by loose stems

*Provides a large blind side bearing area against the rear sheet

*Spreads the tail bearing load/clamp load on the rear sheet making it ideal for use in thin sheet materials

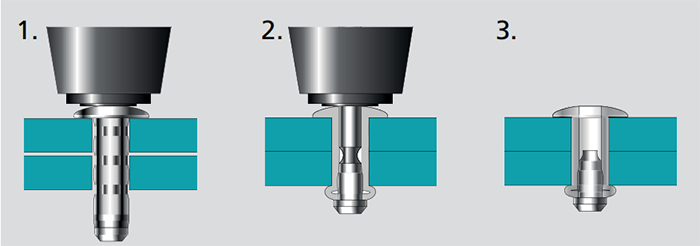

Typical placing sequence

Assembly applications
